Khoom Description

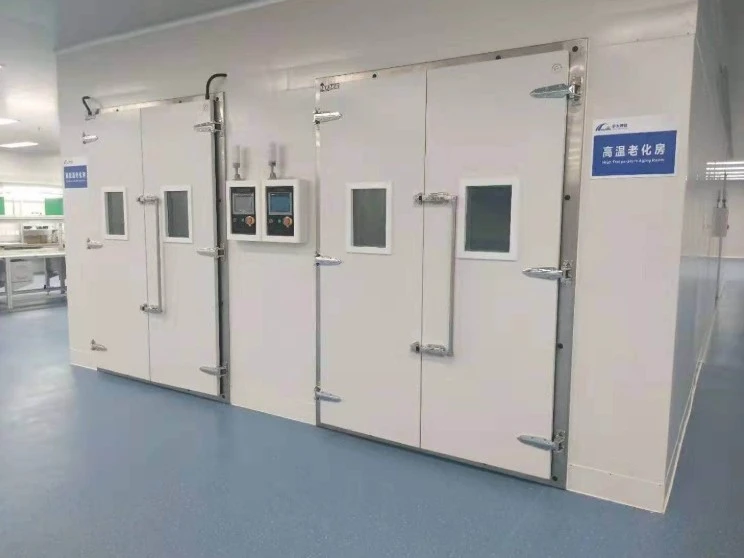

Kev tswj hwm ntawm qhov loj ib puag ncig kuaj chamber yog ib qho ntawm nws qhov tseem ceeb. Feem ntau siv cov kev tswj hwm microcomputer siab heev, nrog kev ua haujlwm ntse interface, cov neeg siv tau yooj yim teeb tsa thiab kho ntau yam tsis muaj ib puag ncig. Lub kaw lus tuaj yeem saib xyuas ib puag ncig hauv lub thawv hauv lub sijhawm tiag tiag, thiab tuaj yeem hloov kho raws li qhov preset tsis tau los xyuas kom meej qhov ruaj khov thiab raug ntawm ib puag ncig. Nyob rau tib lub sijhawm, kev tswj hwm kuj tseem muaj cov haujlwm ntawm cov ntaub ntawv kaw thiab khaws cia, uas tuaj yeem sau cov kev hloov pauv ntawm ib puag ncig tsis zoo thaum lub sijhawm sim txheej txheem thiab muab lub hauv paus rau kev tshuaj xyuas thiab kev soj ntsuam tom ntej. Nws yog dav siv hauv electronics, khoom siv hluav taws xob, tsheb, aerospace, tshuaj, tshuaj thiab ntau lwm yam lag luam. Nyob rau hauv kev tsim cov khoom lag luam theem, nws tuaj yeem pab cov lag luam kom nkag siab txog kev ua tau zoo ntawm cov khoom nyob rau hauv ib puag ncig sib txawv, thiab muab lub hauv paus rau kev txhim kho cov khoom thiab kev ua kom zoo; Nyob rau hauv cov txheej txheem kev soj ntsuam zoo, nws tuaj yeem ua qhov kev sim nruj ib puag ncig ntawm cov khoom kom ntseeg tau tias cov khoom ua tau raws li cov qauv thiab cov kev xav tau, thiab txhim kho kev ntseeg tau thiab ruaj khov ntawm cov khoom.
Daim ntawv thov teb
Kev lag luam hluav taws xob thiab hluav taws xob: Cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob tuaj yeem hloov pauv kev ua haujlwm, tsis ua haujlwm thiab txawm tias muaj kev puas tsuaj nyob rau hauv ib puag ncig sib txawv. Qhov loj ib puag ncig kuaj chamber tuaj yeem simulate ntau qhov chaw huab cua, sim qhov kev ntseeg tau thiab ua haujlwm ntev ntawm cov khoom siv hluav taws xob, thiab xyuas kom meej tias lawv tuaj yeem ua haujlwm ib txwm nyob hauv ib puag ncig sib txawv.
Kev lag luam tsheb: Automotive qhov chaw yuav tsum muaj kev ua haujlwm zoo hauv ntau qhov chaw hnyav. Lub chamber tuaj yeem simulate ib puag ncig ntawm qhov kub thiab txias, tsis tshua muaj kub, cov av noo, tsis tshua muaj siab, thiab lwm yam, thiab ua tiav cov kev sim nruj ntawm cov khoom siv pib los txhim kho tag nrho cov khoom zoo thiab kev nyab xeeb ntawm lub tsheb.
Aerospace: Aerospace cov cuab yeej ua haujlwm nyob rau hauv qhov chaw huab cua xws li qhov siab siab, qis kub thiab tsis tshua muaj siab, uas yuav tsum muaj kev ua haujlwm siab thiab kev ntseeg siab. Cov chav kuaj ib puag ncig loj tuaj yeem simulate cov cheeb tsam no los kuaj thiab txheeb xyuas cov cuab yeej siv dav hlau.
Kev lag luam tshuaj lom neeg: Cov khoom siv tshuaj lom neeg tuaj yeem cuam tshuam los ntawm ib puag ncig sib txawv thaum lub sijhawm khaws cia thiab kev thauj mus los. tuaj yeem simulate ntau yam ib puag ncig los ntsuas kev ruaj ntseg ntawm cov khoom siv tshuaj.
Daim ntawv thov scenario
Cov chav kuaj ib puag ncig loj feem ntau yog siv rau hauv peb qhov xwm txheej hauv qab no
Kev tsim cov khoom lag luam: Hauv cov khoom tsim khoom, Nws tuaj yeem pab R & D cov neeg ua haujlwm kom nkag siab txog kev ua tau zoo ntawm cov khoom hauv ib puag ncig sib txawv, thiab muab lub hauv paus rau kev txhim kho cov khoom thiab kev ua kom zoo.
Kev soj ntsuam zoo: Cov neeg tsim khoom tuaj yeem siv cov chav kuaj ib puag ncig loj rau kev kuaj xyuas cov khoom zoo kom ntseeg tau tias cov khoom ua tau raws li cov qauv thiab cov kev cai.
Kev ntsuam xyuas kev ntseeg tau: Kev ntsuas kev cia siab ntev ntev ntawm cov khoom siv simulate ntau yam ib puag ncig uas cov khoom yuav ntsib hauv cov txheej txheem siv tiag tiag los ntsuas lub neej thiab kev ntseeg siab ntawm cov khoom.
Cov khoom siv parameter
|
Qauv |
BT-K-A |
|
Ntim |
10m3, 15m3, 20m3, 30m3, 50m3, 100m3, raws li cov neeg siv khoom xav tau |
|
Qhov kub thiab txias |
-65 degree ~ +80 degree |
|
Humidity ntau |
20%~95%R.H. |
|
Qhov tseeb / tsis sib xws |
± {{0}}.1 degree, ±0.1%RH / ± 1.5 degree, ± 5.0%RH |
|
Qhov tseeb / volatility |
± 1. |
|
Lub sijhawm txias |
5.0 degree / feeb |
|
Cov khoom siv sab hauv |
SUS #304 Stainless hlau |
|
Cov khoom siv rwb thaiv tsev |
High-temperature high-density amino acid ethyl ester ua npuas ncauj rwb thaiv tsev cov ntaub ntawv, |
|
Cua txias system |
Dej-txias / ob-theem compressor |
|
Kev tiv thaiv |
Tsis muaj fuse hloov, compressor overload hloov, siab thiab tsis tshua muaj siab tiv thaiv hloov, dhau-humidity-kub tiv thaiv keyboards, fuses, ceeb toom system |
|
Khoom siv |
recorder (xaiv), saib qhov rais, 50mm txoj kab uas hla xeem qhov, PL teeb, clapboard, Qhuav thiab ntub gauze pob |
|
Tus tswj |
German Siemens PLC lossis TH-900C Kauslim lossis TEMI |
|
Compressor |
Fabkis lub Tecumseh Hom lossis Lub Tebchaws Yelemees Bitzer |
|
Hwj chim |
1Φ 220VAC ± 10% 50/60Hz & 3Φ 380VAC ± 10% 50/60Hz |
Kev tu txhua hnub
Ntxuav sab hauv thiab sab nraud ntawm chav kuaj tsis tu ncua kom cov cuab yeej huv thiab huv.
Txheeb xyuas qhov kev khiav hauj lwm ntawm cov khoom tseem ceeb xws li cov cua txias, cua sov, thiab cov av noo kom pom thiab kho qhov tsis raug raws sijhawm.
Periodically calibrate ib puag ncig parameter sensor los xyuas kom meej qhov tseeb ntawm cov ntaub ntawv xeem.
Ua tib zoo saib xyuas kev siv cov chav kuaj ib puag ncig, tsis txhob siv qhov kub thiab txias, av noo, plua plav thiab lwm qhov chaw hnyav.
Ua raws li kev saib xyuas ntawm chav kuaj, xws li hloov cov roj lubricating, xyuas cov khoom siv hluav taws xob, thiab lwm yam
