Cov Tshuab Kuaj Hauv Cov Tshuab Digitalyog ib tus neeg pab cuam haib rau kev ua haujlwm kev ua tau kev sim. Cov khoom siv tuaj yeem nqa tawm ntau cov kev ntsuas tshuab kev ua haujlwm xws li ncab, khoov, plastics, rub tawm, textiles, etciles, thiab lwm yam.

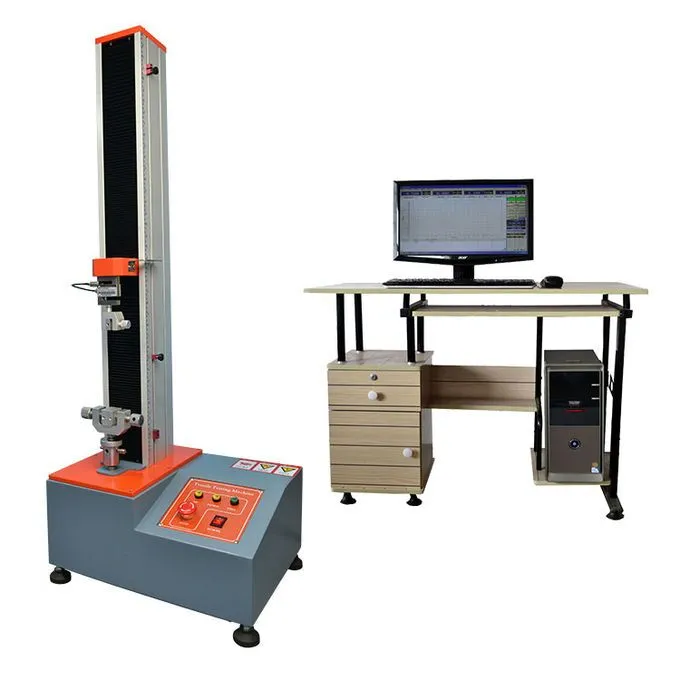

Tus qauv ntawm lub tshuab kuaj Tensile tsuas yog npog cov thav duab tseem ceeb, tsav tsheb, fixture, ntsuas kev ntsuas thiab tswj cov kab ke. Lub kaw lus tsav tsim tau ntawm lub cev muaj zog, reducer thiab cov ntsia hlau ua rau muaj zog rau kev thauj khoom thiab tswj qhov nrawm; Qhov tshwj xeeb fixture tuaj yeem khov kho cov quav ntawm cov duab sib txawv; Lub force sensor thiab kev hloov chaw ntawm lub zog sib sau thiab cov ntaub ntawv tseem ceeb, thiab lwm yam tso tawm cov ntsiab lus tseem ceeb, thiab lwm yam los ntawm kev muab cov kev tswj hwm.
Hauv kev lag luam lag luam, lub zog ntawm cov khoom siv tau sim, kev tshawb fawb kev tshawb fawb tau siv rau cov khoom siv tshuab ua kom pom tseeb tias cov khoom ua tau raws cov qauv. Tensile kev kuaj tshuab ua lub luag haujlwm tseem ceeb hauv kev txheeb xyuas cov khoom ua haujlwm ntawm ntau yam kev lag luam.
Daim ntawv thov
Cov khoom siv kuaj sim digital yog ib qho khoom siv thiab cov khoom siv hluav taws xob, xaim hluav taws xob, cov tsev kawm ntawv siv hluav taws xob, cov tsev kawm ntawv siv hluav taws xob, cov chaw kuaj mob, kev saib xyuas cov chaw ua haujlwm, cov ntaub ntawv tsim tsev thiab ceramics, petrochemical thiab lwm yam lag luam.
Kev Qhia Tshwj Xeeb
|
Muaj peev xwm (1 sensor) |
100kg -2000 kg (2t) |
|
Kuaj qhov dav |
400 hli |
|
Ncab Stroke (tsis muaj fixture) |
1200mm |
|
Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej |
700 × 500 × 1800mm |
|
Ntaus ntawv hnyav kwv yees li. |
200KG |
|
Force ntsuas qhov tseeb |
Zoo dua ± 0. 5% |
|
Deformation indormation raug yog |
Zoo dua ± 0. 5% |
|
Thauj Khoom Siv |
Anhui AIPKIK S-hom Force Sensor |
|
Kev daws teeb meem siab |
1/250000 |
|
Ua kom dav |
24- bit ad staypless amplification |
|
Chav Tos Xaiv |
N, kg (suav nrog ntau lub chaw ntsuas suav nrog cov koog uas yuav tsum tau kho cov chav uas yuav tsum tau ua) |
|
Kuaj ntau |
{{0 {0}}. 01 ~ 300 hli / min (tuaj yeem teeb tsa tsis nyiam) |
|
Kev Tswj Ceev Ceev |
{{{{0}}}. 2% (0.5 qib) |
|
Overload teeb kev teeb tsa kev pab |
Thaum lub zog sim tshaj li 10%, lub system cia li kaw cia kev tiv thaiv |
|
Mob stroke Chaw Kev Tiv Thaiv Muaj nuj nqi |
Mob stroke sab sauv thiab qis dua txoj hauj lwm kev tiv thaiv, |
|
Force kis txoj kev |
Taiwan Teco Servo Servo Lub Cev Muaj Zog + Servo Drive Controller + Taiwan TBI Precision Ntsia Hlau |
|
Kev siv fais fab |
700w; (Kev teeb tsa xaiv raws li cov peev xwm sib txawv) |
|
Tshwj Xeeb Software |
Kev siv rau lub software version ntawm lub cav ntsuas ntsuas lub cav |
|
Kuaj ntau |
Tuaj yeem ua qhov nro, siab, qaug zog, khoov, kev ua yeeb yaj kiab thiab shear |
|
Kev Siv Hluav Taws Xob |
1th, 220V 50/60 hz |
|
Kaw Txoj Kev |
Sab sauv thiab qis dua Chaw Nyab Xeeb, Chaw Nres Tsheb Thaum Muaj Xwm Ceev, Kev Tsim Kho thiab Erongation Chaw, Tshuav puas tsuaj |
|
Kev tiv thaiv muaj nuj nqi |
1. Txwv kev tiv thaiv: Nrog kev tswj hwm cov program thiab tshuab polarity tiv thaiv kom ntseeg tau qhov haujlwm ib txwm ua ntawm cov ntsuas hauv kev teeb tsa stroke; |
|
Tensile Xeem Ntsuas 1 Txheej: |
|
Txuj Ci
Cov Tensile Tensile Testing tshuab ntsib tus qauv raws li hauv qab no:
GB / T 16491-1996 Hluav Taws Xob Kuaj Xyuas Universal;
GB / T 228. {{{1-2010 Nws yog xim hlau - Tensile Xeem - Tshooj 1: Kev xeem txuj ntawm chav tsev kub;
GB / T {528-2009 kua roj hmab los yog cov roj hmab kub thermoplastic - kev txiav txim siab ntawm lub zog tensile-hom ib yam;
GB / t 1040-2006 tensile cov qauv ntsuas ntsuas;
GB / T {1041-2008 plastics - COMPESSION YAM KEV TES TES;
GB / T 9341-2008 Yas plastics Bending Cov Qauv Ntsuas;
Yog {0 527-1993 kev txiav txim siab ntawm lub zog tensile ntawm plastics;
GB / t 13022-91 Tensile xeem txoj kev rau cov yeeb yaj kiab yas;
Iso {604-2002 plastics - kev txiav txim siab ntawm compression;
Iso {178-2004} Cov kws ntxooj kev siv tas;
ASTM D 638-2008 Txheem txoj kev xeem rau lub zog tensile ntawm plastics;
Ntau yam kev sim los ntawm cov qauv haujlwm lossis thoob ntiaj teb xws li GB, ISO, ASTM, BS, Din, thiab JIS.
Ob hom ntawm cov tshuab kuaj sim digital yog dab tsi?
Hauv lub tshuab kuaj hluav taws xob: Hom Tensile Kuaj no kom ntsuas kev quab yuam thiab cov yam ntxwv ntawm kev sim siab thiab kev ua haujlwm yooj yim. Nws yog feem ntau yog siv nyob rau hauv kev tshawb fawb tshawb fawb, xeem cov tsev kawm thiab cov khoom tsim cov khoom tshiab.
Electro-hydraulic servile Tensile Kuaj Tshuab Tswj lub zog thiab kev hloov cov yam ntxwv ntawm electro-hydraulic, thiab muaj cov yam ntxwv ntawm kev ntsuas dav dav thiab qhov ruaj khov. Nws yog feem ntau haum rau lub sij hawm uas yuav tsum muaj ntau ntawm kev ntsuas lub zog thauj, xws li kev sim cov khoom loj thiab cov qauv sib txawv.
