Khoom Description

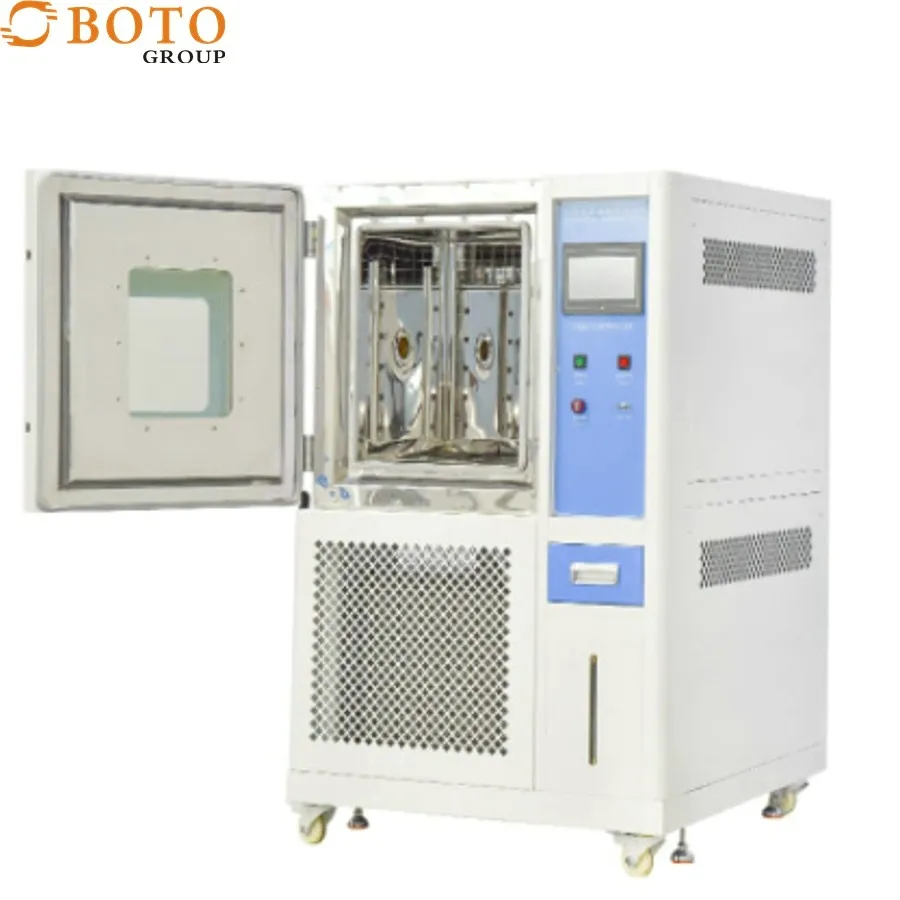

Thermal humidity chamberyog ib qho cuab yeej tshwj xeeb uas siv los ntsuas qhov kev ua tau zoo ntawm cov khoom nyob rau hauv qhov chaw kub thiab av noo. Los ntawm kev tswj hwm qhov kub thiab txias, nws tsim cov dej ntub thiab kub sib txawv los ntsuas qhov kev ntseeg tau, durability thiab adaptability ntawm cov khoom. Cov cuab yeej siv feem ntau yog tsim los ntawm lub thawv, tswj qhov system, cua sov, cua txias system, humidification system thiab dehumidification system. Lub thawv txais cov khoom siv rwb thaiv tsev zoo los xyuas kom muaj kev ruaj ntseg ntawm sab hauv kub thiab av noo. Lub kaw lus tswj tuaj yeem kho qhov ntsuas kub thiab av noo kom tau raws li qhov xav tau sib txawv.
Daim ntawv thov teb
Thermal humidity chamber yog dav siv hauv electronics, khoom siv hluav taws xob, kev sib txuas lus, tsheb, aerospace, tshuaj, tshuaj thiab lwm yam lag luam. Hauv kev lag luam hluav taws xob, cov khoom siv hluav taws xob xws li xov tooj ntawm tes, khoos phis tawj, ntsiav tshuaj, thiab lwm yam tuaj yeem raug kev txom nyem los ntawm kev ua haujlwm tsis zoo, corrosion, luv Circuit Court thiab lwm yam teeb meem nyob rau hauv qhov sib txawv ntawm cov av noo thiab kub. Los ntawm kev ntsuam xyuas ntawm Thermal humidity chamber, cov teeb meem no tuaj yeem pom ua ntej thiab txhim kho kom zoo dua qub thiab kev ntseeg siab ntawm cov khoom. Hauv kev lag luam automotive, cov khoom siv tsheb xws li cav, log tsheb, thiab cov tshuab hluav taws xob yuav tsum muaj kev ua haujlwm zoo hauv ntau qhov chaw hnyav. Lub chamber tuaj yeem simulate cov huab cua sib txawv xws li qhov kub thiab txias thiab cov av noo, qhov kub thiab txias thiab cov av noo siab, thiab ua rau kev sim nruj ntawm qhov chaw pib kom muaj kev nyab xeeb thiab kev ntseeg siab ntawm lub tsheb. Hauv kev lag luam kws tshuaj, cov tshuaj thiab cov khoom siv kho mob yuav tsum tau muab khaws cia thiab thauj mus rau hauv ib qho chaw ntub thiab kub. Nws tuaj yeem simulate cov cheeb tsam no los ntsuas kev ruaj ntseg thiab kev ua tau zoo ntawm cov tshuaj thiab cov khoom siv kho mob.
Daim ntawv thov scenario
Thermal humidity chamber yuav siv tau nyob rau hauv kev loj hlob theem ntawm cov khoom. R & d cov neeg ua haujlwm tuaj yeem sim ua qhov sib txawv ntub dej thiab cua sov ib puag ncig los ntawm cov khoom ntub dej thiab thermal kuaj chamber los ntsuas qhov kev ua tau zoo thiab kev ntseeg siab ntawm cov khoom, muab lub hauv paus rau kev txhim kho cov khoom thiab kev ua kom zoo. Nyob rau hauv cov theem ntau lawm, cov av noo thiab cua sov kuaj chamber tuaj yeem siv rau kev tshuaj xyuas cov khoom zoo. Cov neeg tsim khoom tuaj yeem ua qhov ntsuas dej noo thiab cua sov ntawm txhua pawg ntawm cov khoom kom ntseeg tau tias cov khoom ua tau raws li cov qauv zoo. Nyob rau theem kev pabcuam tomqab muag, cov khoom siv ntub dej ntub dej tuaj yeem siv rau kev soj ntsuam txhaum ntawm cov khoom. Thaum cov khoom lag luam ua tsis tiav, tus kws tshaj lij tuaj yeem sim ua qhov chaw ib puag ncig thaum qhov kev ua txhaum tshwm sim los ntawm cov chav ntsuas kub ntub dej, tshuaj xyuas qhov ua rau qhov txhaum, thiab muab cov ntaub ntawv siv rau kev saib xyuas thiab txhim kho cov khoom. Raws li cov cuab yeej ntsuas tseem ceeb, nws ua lub luag haujlwm tsis tuaj yeem hloov pauv hauv kev lag luam niaj hnub thiab kev tshawb fawb thiab thev naus laus zis. Nws tuaj yeem simulate ntau qhov chaw ntub dej thiab thermal, muab lub hauv paus txhim khu kev qha rau kev tsim khoom, kev tsim khoom thiab kev sim zoo. Nrog rau kev nce qib ntawm kev tshawb fawb thiab thev naus laus zis thiab kev xav tau ntawm kev ua lag luam nce ntxiv, kev ua haujlwm thiab kev ua haujlwm ntawm Lub Tsev Thermal Humidity Chamber yuav txuas ntxiv txhim kho, thiab ua kom muaj txiaj ntsig zoo rau kev tsim kho ntawm ntau yam kev lag luam.
Cov khoom siv parameter
|
Qauv |
BT -280 |
BT -2150 |
BT -2225 |
BT -2408 |
BT -2800 |
|
|
Inner Size W × H × D (cm) |
40×50×40 |
50×60×50 |
50×75×60 |
60×85×80 |
100×100×80 |
|
|
Sab Nraud Loj W × H × D (cm) |
93×155×95 |
100×148×106 |
117×166×91 |
140×176×101 |
170×186×111 |
|
|
Volume (V) |
80 L |
150L |
225L |
408L |
800L |
|
|
Temp thiab Hum Range |
A: -20 degree ~ 150 degree B: -40 degree ~ 150 degree C: -60 degree ~ 150 degree D: -70 degree ~ 150 degree RH20% -98% |
|||||
|
Muaj nuj nqi |
Hloov pauv |
± 0.5 degree ± 2.5%RH |
||||
|
Deviation |
±0.5°C-±2°C ±3%RH(>75% RH); ± 5% RH (tsawg dua lossis sib npaug rau 75% RH) |
|||||
|
Tus tswj Kev tsom xam Qhov tseeb |
± 0.3 degree ± 2.5%RH |
|||||
|
Cua Cycling Way |
Centrifugal ntxuam-broadband hom yuam cua ncig |
|||||
|
Txoj Kev Tub Txias |
Ib theem compression tub yees |
|||||
|
Lub tub yees |
Fabkis Tecumseh |
|||||
|
Cov tub yees |
R4O4A USA DuPont ib puag ncig tiv thaiv tub yees (R23+R404) |
|||||
|
Txoj kev Condensing |
Cua txias los yog dej txias |
|||||
|
Txoj Kev Muab Dej |
Automatic cycling dej muab |
|||||
|
Kev ruaj ntseg ntaus ntawv |
Tsis-fuse-switch (compressor overload, tub yees high low voltage, over-humidity thiab kub tiv thaiv, Kev tiv thaiv hloov, fuse stoppage ceeb toom system |
|||||
