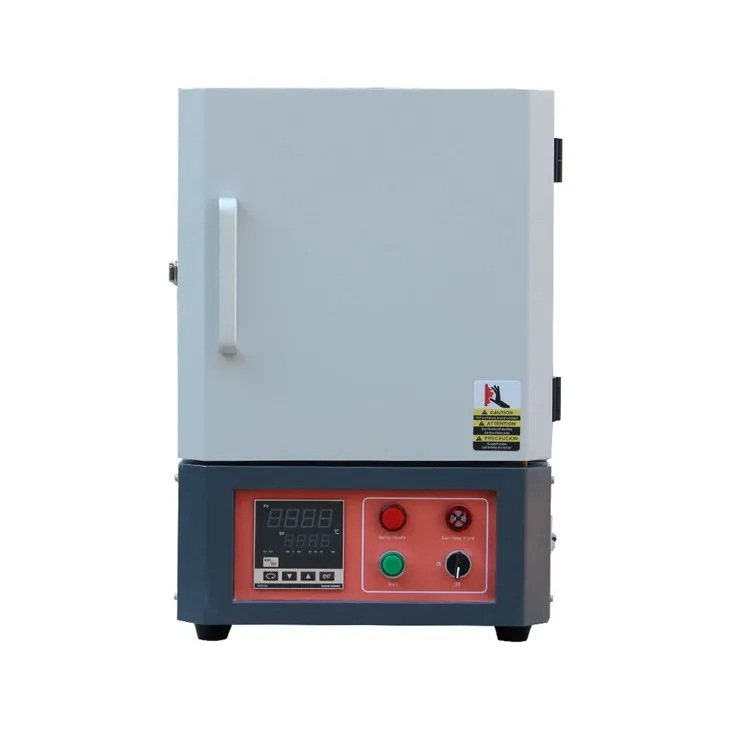

Lub siab temp muffle cua sov kom ncav cuag qhov kub ntawm 1200 degree. Nws lees txais cov roj carbon hlau zoo tshaj plaws thiab cov hmoov zoo nkauj electrostatic txau cov txheej txheem, uas muaj qhov kub siab tiv taus thiab corrosion tsis kam. Cov cua sov ua kom tiav 1500 # Aluminium Ceramic FaBoard, lub nqus plua plav, ib-thooj ua kom zoo thiab corrosion tsis kam, thiab lub neej ntev. Cov cua sov kev npaj txhij ua rau hlau ua hlau rau peb-tog cua sov. Qhov ntsuas kub tswj tau precise meej meej brid maub los, uas tuaj yeem ua programmed hauv 30 ntu thiab muaj qhov kub tswj qhov raug. Nws yog nruab nrog kev tiv thaiv cov kab ke xws li lub qhov rooj qhib lub zog, tiv thaiv kev tiv thaiv, thiab ntau tshaj-tswb. Cov qib kev siv tshuab yog qhov siab, thiab ntau qhov ntsuas tau tau nce qib siab. Qhov no muffle rauv taws yog qhov cuab yeej zoo rau kev kho cua sov, cov kev tshawb fawb txog kev tshawb fawb thiab kev tua hluav taws. Nws tuaj yeem siv rau cov hmoov nplej thiab kev kho cua sov, ceramic thiab cov kab mob tawm ntawm cov hlau nyob rau hauv lub chaw soj ntsuam thiab kev lag luam.
Kev Tshwj Xeeb
1. Qhov siab tshaj plaws yog 1200 degree, thiab kev siv tshuab txuas ntxiv yog qis dua 1100 degree;
2. Lub qhov rooj cua sov qhib rau sab;
3. Adopts High-Zoo Ob-Txheej Txheej Hlau Hnab, thiab saum npoo
4. Square Rauv Chamber, Ceramic Fiber Liner, CNC zoo carving;
5. Hre tawm cov hlau hluav taws xob ntawm peb sab, cua sov: {{{} {2}} degree \/ min kho tau;
6. PID motion, ntsuas kub thiab hloov kho qhov ntau tshaj tawm {{}} degree, programmable 30 seem;
7. Nrog RS485 kev sib txuas lus interface, nws tuaj yeem txuas nrog kev lag luam hauv lub computer;
8. 7 "Kov Kov Ntsuam Xyuas Kev Tswj Xyuas, Kev Kho Cua Sov Curse Real-Time Zaub, Cov Ntaub Ntawv tuaj yeem rub tawm;
9. Lub hwj chim tawm thaum qhib lub qhov rooj, tshaj-tswb, tiv thaiv kev tiv thaiv;
10. Txais Fabkis Schneider Cov Hluav Taws Xob Cov Hluav Taws Xob, Lub Neej Siv Sijhawm ntev;
11. Ntev-lub neej n-hom thermocouple.
Kev Qhia Tshwj Xeeb
|
Tus qauv |
BT-M 1200-5 siab temp muffle cua sov |
|
Hom rauv |
Txheem ntsuas kev kho kom sov ua kom sov, sab qhov rooj |
|
Qhov Loj Loj |
150 * 150 * 225 hli (w * h * h * d), rauv ntim 5l |
|
Muaj pes tsawg |
Cub Hluav Plav, Tej Fais Rawg, Kub Tswj Kev, Hluav Taws Xob |
|
Lub Rauv Lub Cev |
Carbon Steel Plhaub, ib puag ncig phooj ywg Electrostatic Hmoov Txau Txau Txau Txau, Kev Tiv Thaiv Kev Tawm Tsam Thiab Cov Txwv xeb |
|
Qhov Rooj Rauv |
Los ntawm phau ntawv, qhov rooj sab |
|
Kev pab fais fab |
2.5 kw; AC220V; 50HZ |
|
Cov naj npawb ntawm theem |
Ib Leeg-Theem Hluav Taws Xob |
|
Kev khiav hauj lwm kub |
Qhov kub tshaj kub 1200 degree; Pom zoo kev ua haujlwm txuas ntxiv kub rt -1100 degree. |
|
Qhov sov |
Tsis siv neeg cov kev ntsuas nruj; Programmellamable 30 ntu; Qhov kub yog + \/ - 1 degree. |
|
Cov Khoom Rauv Khoom |
1500 # Kuab Aluminium Feat cov khoom siv, ntub dej nqus dej lim, ib-thooj rauv; |
|
Cheebtsam Hluav Taws Xob |
Cov hluav taws xob tseem ceeb yog Schneider lossis Siemens; |
|
Cua Sov Rau |
Embedded Hre Alloy Ua Hlau Hluav Taws, Peb-tog cua sov, sib xws rau qhov kub thiab txias. |
|
Cua kub tus nqi |
Qhov Cua Cua Sov Ntau Tshaj: 20 degree \/ min; Pom zoo tus nqi cua sov: 15 degree \/ min. |
|
Yeem (tus nqi ntxiv) |
Papless paperder; Kov npo; Cua cub Casters cub; Alumina crucible; Ntaus Chimney |
|
Kev pab cuam tom qab muag |
1. Cov neeg siv hluav taws xob xws li cov khoom sov, crucibles, quartz tub, thiab lwm yam. Tsis tau them los ntawm kev tiv thaiv; 2. Kev puas tsuaj los ntawm Corrosive Gases thiab Acidic Gases tsis yog them los ntawm kev tiv thaiv; 3. Tsuas yog kev puas tsuaj los ntawm cov khoom siv sab nraud lossis raug cai los ntawm cov neeg siv khoom, peb lub tuam txhab ntawm cov nqi thauj khoom thiab cov nqi thauj khoom los ntawm kev kho. |
|
Sau ntawv |
1. Tom qab lub sijhawm siv, lub cub tawg yuav muaj cov kab nrib pleb me me, uas yog qhov tshwm sim ib txwm thiab tsis cuam tshuam dab tsi. Nws tuaj yeem kho nrog cov oxide txheej; 2. Tsis txhob txhaj hluav taws xob, tawg tau yooj yim lossis muaj cov roj av hnyav. |
|
Cov ntsiab lus ntim |
Lub cev rauv * 1; Hlau hlau (ntsia rau hauv qhov chaw); N-hom thermocouple (ntsia nyob rau hauv qhov chaw) * 1; Cov nplaig crucible * 1; Cov hnab looj tes kub kub * 1 khub; Phau ntawv txhais tes * 1; Los ua ke kos duab thiab xaim duab * 1. |
Daim ntawv thov tseem ceeb
High temp muffle rauv taws ua kom sov qhov kub, haum rau ntau yam kev lag luam:
1. Cov Khoom Siv Khoom Txuj Ci
Kev kho cua sov hlau: Cuab lub cuab yeej steel quenching (800-1000 degree), titanium alloy annealing (1200 degree);
Ceramic Sintry: Alumina Ceramic Densification (1500-1700 degree).
2. Tshuaj Lom
Cov Kev Txiav Txim Tshauv: Coal Tshauv Nrhiav tau (815 degree), Kev Ntsuam Xyuas Khoom Noj Khoom Haus Mineral (550 degree);
Thermogravetric tsom xam: sib xyaw nrog TGA los saib xyuas lub thermal ruaj ntawm cov ntaub ntawv (xws li polymer kev sib cav sib ceg).
3. Kev lag luam thiab kev tshawb fawb
Lithium roj teeb khoom siv hluavtaws (xws li lifepo₄ zoo electrode khoom npaj);
Geological Kev Tshawb Fawb: Simulate qhov kev kub siab ib puag ncig ntawm lub ntiaj teb crust (txog li 1300 degree).
